Does cube partition exists? Script task in SSIS explained!

The first necessary step in dynamically creating cube partitions is to determine if the partition already exists. If the partition does not exists then we create the partition, if it does exists we simply process the existing partition. Recently I gave a free webinar online at PragmaticWorks.com and a few of the attendees wanted more details on the script task I used, so here we go. It’s also important to note that I used a daily partitioning strategy for the webinar. This is important because the naming conventions of my partitions included the partition name and date that I used as a filter. For example:


In this blog post I will walk you through step by step setting up this script task. Please see below. First the setup:

  • Create the following variables, if you are in 2012 or 2014 create these as package parameters. We will use these parameters to establish our connection to Analysis Services and then build out the partition name dynamically.
    • image
  • Now we need to create another variable, this variable will be used in our control flow to determine if we should create the partition or process the partition, we will get to this part in a bit.

image The Script Task: (Setup) Now that we have created our variables and have that part set up we are going to build our script task.

  • Step 1) Drag a script task component from the toolbox into your control flow.
  • Step 2) Open the task for editing and choose C# as the script language.
  • Step 3) ReadOnlyVariables: Select all the variables from Step 1 in the setup section.
  • Step 4) ReadWriteVariables: Select the variable intDoesPartitionExists
  • Step 5) Finally, click the Edit Script button.

The Script Task: (Code)

  • Step 1) Add the Microsoft.AnalysisServices reference.
          1. From the solution explorer right click on references and select “new reference”.
          2. From the Add Reference window select .NET tab
          3. Find and select Analysis Management Objects and click ok.

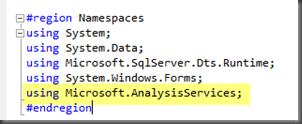

    • Step 2) Add Microsoft.Analysis Services as a namespace. Screenshot below:
      • image
  • Step 3)  Finally we can add our code. In this section we are going to use the parameters previously created to connect to our cube and then check to see if a partition exists. For this blog we simply hardcoded these values for demonstration purposes but typically we would set these values dynamically. If the partition exists I populate the variable intDoesPartitionExists with a value of 1 for True. If the partition does not exists I populate it with the value of 0 for false. I then use this variable in the control flow to determine whether to process or create partitions.
  • Step 4) Find the section titled “public void main() and paste the following code where it says Add your code here
// TODO: Add your code here

            string serverName = "";
            string databaseName = "";
            string cubeName = "";
            string measuregroupName = "";
            string partitionname = "";
            string Date = "";


            //Retrieve the server, database, cube, etc. details from the variables
            serverName = Dts.Variables["ServerName"].Value.ToString();
            databaseName = Dts.Variables["DatabaseName"].Value.ToString();
            cubeName = Dts.Variables["CubeName"].Value.ToString();
            measuregroupName = Dts.Variables["MeasureGroupName"].Value.ToString();
            partitionname = Dts.Variables["MeasureGroupPartitionName"].Value.ToString();
            Date = Dts.Variables["Date"].Value.ToString();

            //Build the connection string
            string ConnectionString = "Data Source=" + serverName + ";Catalog=" + databaseName + ";";

            //Connect to the server and select the database, cube, etc.
            Server srv = new Server();
            srv.Connect(ConnectionString);
            Database db = srv.Databases.FindByName(databaseName);
            Cube cb = db.Cubes.FindByName(cubeName);
            MeasureGroup mg = cb.MeasureGroups.FindByName(measuregroupName);

            if (mg.Partitions.ContainsName(partitionname + "_" + Date))
            {
                Dts.Variables["intDoesPartitionExists"].Value = 1;
            }
            else
            {
                Dts.Variables["intDoesPartitionExists"].Value = 0;
            }

            srv.Disconnect();
            srv.Dispose();

You can find my webinar on Processing SSAS with SSIS at the following link: http://pragmaticworks.com/Training/FreeTraining/ViewWebinar/WebinarID/1714 Thank you for looking!

Advertisements

Processing SSAS Cubes with SSIS –Q & A

For those of you who attended my webinar on Processing SSAS cubes with SSIS, thank you! For those of you who didn’t the video is still available here: http://pragmaticworks.com/Training/FreeTraining/ViewWebinar/WebinarID/1714.

Below are a few of the questions I received in the webinar. There will be a couple of follow up blogs for the more detailed questions.

Q: Can you please share the script used to generate the partitions?

A: I will post a follow up blog in the next couple of days with step by step instructions. Sharing my exact script would not be helpful. I will update this post with the additional blog.

Q: How are you stopping through your SSIS Steps within package execution?

A: Breakpoints! I used breakpoints to pause the package during execution so I could explain exactly what was going on. To enable breakpoints on a task inside SSIS you simply right click on the task and then select edit breakpoints. I showed this at the end of the webinar during Q&A.

Q: What are our best logging options if we do all of our cube processing with script tasks instead of the native components?

A: Your best logging options are going to be setting up a Profiler Trace or Extended events. I briefly explained setting up a trace at the end of my webinar.

Q: Does the C# script task need the connection string information to query SSAS for the partition information?

A: Yes. In my webinar I showed how to dynamically create partitions for your cube inside of SSIS. Before creating them I used a script task to see if the partition already existed. I have posted a follow up blog below:

https://mitchellsql.wordpress.com/2014/11/18/does-cube-partition-exists-script-task-in-ssis-explained/

Q: How are the aggregation designs handled on the dynamic partitions?

A: This is handled in the XMLA by specifying the Aggregation ID. I showed this at the end of my webinar during the Q&A section and I will also include this in a follow up blog on creating the XMLA for dynamic partitions.

Q: Is this applicable to tabular cube processing?

A: Yes. The analysis services processing task processes tabular models, cubes, dimensions, and mining models.

Once again thank you for attending our free webinar. Until next time!

Quickly encrypt and decrypt files with the TF PGP task for SSIS!

Business Problem

I recently had to help a client with encrypting a file before uploading that file to an FTP. Thanks to the PGP task in Task Factory we were able to fulfill this requirement in a matter of minutes.

Walkthrough

In this example I will walk you through quickly creating public and private keys and then using those keys to encrypt the file.

    1. Create two variables. One for the source location and one for the destination:
    2. image
    3. From the SSIS Toolbox drag and drop the PGP Task into the control flow and then open it for editing.
    4. For “What action will this perform?” choose Encrypt File.
    5. Click Generate Key to create your own public and private keys. Note: Public keys are used for encryption and private keys are used for decryption.
    6. image
    7. Now to fill out some basic information. The private key created will require a password, please remember to store this password somewhere safe, i.e. some kind of password vault. This will be required to decrypt files.
    8. image
    9. Now that we have generated PGP keys we can now encrypt our files in just a couple steps. A screenshot of all steps below is listed at the bottom.
    10. For Section 1:
      1. Select “File location is stored in a variable”
      2. Select “strFileName” for the variable
    11. Section 2:
      1. Select “Destination location is stored in a variable”
      2. Select “strFileName_Encrypt” for the variable.
      3. Select the checkbox for Overwrite the destination file if it already exists
    12. Section 3:
      1. Select connection manager: Select “Public”.
        1. Note: The connection manager “Public” was added to the package automatically when we generated new keys. Public is the name I gave to my public key ring.
      2. Finally select the Public Key you wish to use for encryption. We only have one key on our key ring.

I have provided three screenshots below.

    1. Screenshot 1 – Final Configuration
    2. Screenshot 2 – File before PGP Encryption
    3. Screenshot 3 – File after PGP Encryption

Screenshot of final configuration:







As always thanks for looking and your feedback is appreciated!
