How to use the Optimize For hint to force the execution plan you want.

Quite some time back I found myself fighting with an Execution Plan generated by SQL Server for one of my stored procedures. The execution plan always returned an estimated row of “1” when processing for the current day. I won’t go into details on why this one specific stored procedure didn’t use the older cached plans as expected. I will however tell you like most things with SQL Server there is more than one way to solve a problem Smile.

This method is something I have personally wanted to blog because it’s something I have only used a handful of times when I just couldn’t get the execution plan to work the way I wanted it to. Note that using this hint we are forcing the SQL Server Optimizer to use the statistics for the specific variable value that we provide. However if the table was to grow significantly in the future we may be hurting performance by forcing a bad execution plan and that is a drawback to using this hint, so now you know!

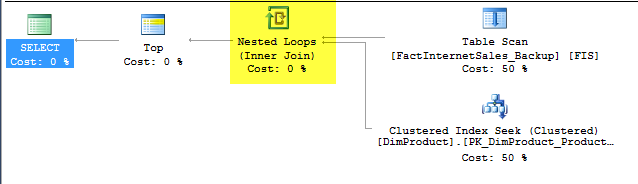

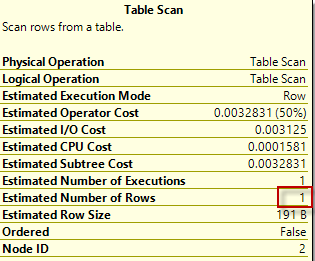

Take a look at the two screenshots below. The first is the estimated rows from the Fact Internet Sales table and the second is the estimated execution plan.



What I actually want to see for this execution plan is HASH MATCH. This will perform significantly better for the number of records that I will have. Unfortunately due to out of date statistics I’m getting a bad plan.

So let’s note two things.

  1. First, in most situations the best solution here is to simply update statistics. This should be part of ANY database maintenance plan.
  2. Second, The example I am using here is not great. I am simply forcing the plans to do what I want for demo purposes.

Let’s take a look at the original query:

DECLARE @ShipDate DATE = '1/1/2008'

SELECT
       [EnglishProductName] AS Product
      ,[SalesOrderNumber]
      ,[OrderDate]
      ,[DueDate]
      ,[ShipDate]
  FROM
    [dbo].[FactInternetSales_Backup] FIS
  JOIN
    [dbo].[DimProduct] DP
  ON
    DP.ProductKey = FIS.ProductKey
  WHERE ShipDate > @ShipDate

Now we are going to modify this query quickly to use the Optimize For hint. This hint is going to allow us to optimize our Execution Plan in SQL Server using the specified parameter. In my instance this is going to be a previous date where I know the statistics are reflective of what I want to see in my execution plan.

Here is the modified query:

DECLARE @ShipDate DATE = '1/1/2008'

SELECT
       [EnglishProductName] AS Product
      ,[SalesOrderNumber]
      ,[OrderDate]
      ,[DueDate]
      ,[ShipDate]
  FROM
    [dbo].[FactInternetSales_Backup] FIS
  JOIN
    [dbo].[DimProduct] DP
  ON
    DP.ProductKey = FIS.ProductKey
  WHERE ShipDate > @ShipDate

  OPTION (OPTIMIZE FOR (@ShipDate = '1/1/2005'))
GO

In this query the result set returned will still be for the original value of the variable “1/1/2008’. However the SQL Server optimizer is going to generate the plan using the OPTIMIZE FOR hint that we provided. (Highlighted in Yellow).

Now let’s take a look at our new Estimated Execution plan:


This time we are getting a Hash Match which is much more applicable for our table and the number of records that will be queried.

As always, Thanks Smile

Advertisements

The transaction log for database is full due to ‘REPLICATION’. “Replication not enabled.” CDC

Welcome to Monday Morning Madness. What do you do when your Transaction Log runs out of space? Let me share my most recent experience.

My transaction log had a hard limit of 2TB in size. There are different opinions out there among the DBA elite on whether you should have a limit on the growth of your transaction log or if you should leave it as unlimited. As a BI Developer I do not have an opinion here, just note that I am happy that in this instance I had a hard limit.

The Error Message:

The transaction log for database <Database Name> is full due to ‘REPLICATION’.

Oh that’s it?? Easy fix right. Let’s walk through troubleshooting this problem.

  • My database is in SIMPLE recover mode, so why is it waiting to checkpoint?

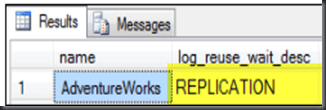

  • I run the following command to find out the reason the log is waiting to clear.
USE master;
GO
SELECT name, log_reuse_wait_desc, * FROM sys.databases
WHERE name = '<Database Name>';


Replication, really? Who turned on REPLICATION!!?? I had no idea replication was turned on. Let’s find out.The following code will show if replication is turned on for any of my databases:

SELECT name, is_published, is_subscribed, is_merge_published, is_distributor
FROM sys.databases
WHERE    is_published = 1 or is_subscribed = 1 or
        is_merge_published = 1 or is_distributor = 1

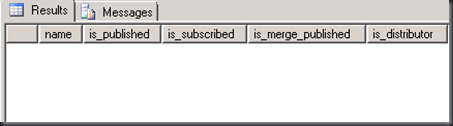

      Ok so here is my result set from the above query:


  • So to recap, the transaction log is not purging itself because of a long open transaction due to replication but replication is not turned on?? DBCC OPENTRAN will show open transactions.

Well after some further research I discovered that my Change Data Capture job had failed. More specifically the CDC_Capture job. We turned on CDC to capture some otherwise hard to capture changes. The way CDC works is it crawls the transaction log and once it has completed with a section of the log that part of the log can then be cleared and reused. In my case CDC job failed and as a result none of the transaction log was being allowed to clear.

Note: By default when you enable CDC it will create two jobs. One that captures the changes and the other that cleans up the tables where the changes are stored. The schedule to run these jobs is configured to ONLY start upon starting of SQL Agent. I would recommend modifying the scheduling of this job.

So finally we discovered the problem. Now how do we fix this?

  1. First try turning on the CDC Capture job. (This doesn’t work because the transaction log is full.)
  2. Try shrinking the database. (Well this won’t work for two reasons. One transaction log is full, secondly because there is no free space to shrink.)
  3. Third you can try changing the max limit on your transaction log. Bet you can’t guess what happens when you do this? This doesn’t work because the transaction log is full.

None of the above situations will work here because they all require at least some space on the transaction log to complete.

  1. Ultimately I ended up creating a new transaction log on my database.
    1. This is why I was glad my original transaction log had a “Hard” limit. If there was no hard limit then I ultimately would have completely run out of space on my disk and I would not have been able to simply create a second transaction log.
  2. Once the new transaction log was in place I then disabled CDC on the database. I disabled it because the client was no longer using it. Alternatively I could have turned on the job and just let it crawl the entire transaction log, all two TB Smile.
  3. Once CDC was disabled I ran the following checkpoint command to checkpoint and clear the transaction log. (See below).
  4. Once the transaction log was cleared I ran DBCC SHRINKFILE (DatabaseName_LOG) to reclaim the empty space.
  5. Finally I deleted the backup transaction log from above!
    1. In general having more than one transaction log can hurt performance. I added the additional transaction log temporarily and once it was no longer needed I removed it.
  6. USE <DatabaseName>;
    GO
    CHECKPOINT;
    GO
    CHECKPOINT; -- run twice to ensure file wrap-around
    GO

As Always thanks for looking!
